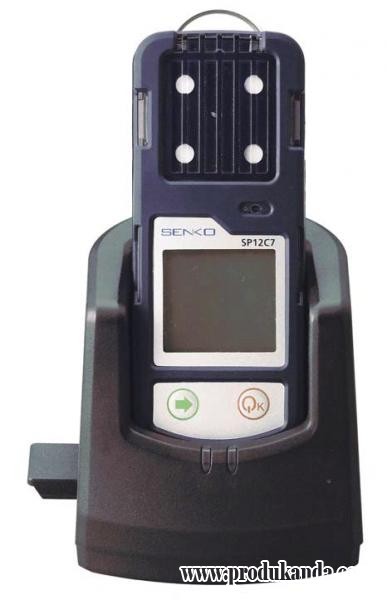

Spesifikasi - SENKO SP12C7 Portable Multi Gas Detector
|
MODEL |
SP12C7 | |||
| Detecting Gas |
O2 |
CO |
H2S |
EX |
| Detecting Range | 0~30% | 0~500ppm 0~1,000ppm |
0~100ppm 0~200ppm |
0~100%LEL |
| Sensor Type | Galvanic | Electrochemical | Electrochemical | Catalytic |
| Sampling Method | Diffusion | |||
| Display | Digital LCD | |||
| Audible Alarm | 90dB | |||
| Visual Alarm | Red LED & White back light | |||
| Vibrator Alarm | Vibrator | |||
| Power | Alkaline battery 2ea, Rechargeable NI-MH battery pack | |||
| Operating temp. & Humi. | -20? ~ +50?, : 15% ~ 90% RH (non-condensing)- | |||
| Explosion proof | EEx ia IIC T4 | |||
| Case | Clear polycarbonate with thermal-plasticelastic (TPE) overmold. | |||
| Standard Accessories | Belt Clip, Charger | |||
| Option | External pump | |||
| Dimensions | 54mm(W) x 135mm(H) x36.5 mm(D) | |||
| Weight | 240g |
|||
